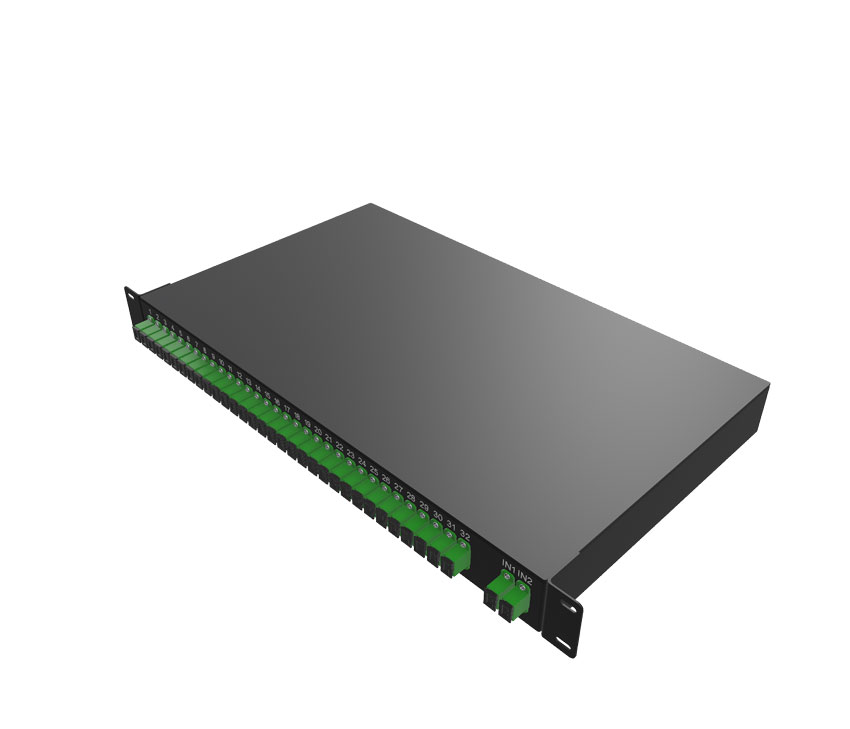

Rack Mount Type PLC Splitter

Passive optical branching device for optical signal power splitting
Complies with Telcordia-1209-core and GR-1221-core standards
Covers 1260-1650 nm wavelength range; uses G657A single-mode fiber
Low insertion loss, low PDL, high uniformity & directivity
Compact size (45×205×483 mm) with optional input/output configurations
Operates in -40 ~ +85 °C; high reliability and stability
Suitable for FTTH/FTTC/FTTB, PON, CATV networks and fiber optic systems

Inquire Download

Product Description
Specification
Product Advantage

Product Description

1. Overview

The Rack Mount Type PLC (Planar Lightwave Circuit) Splitter is a fully passive optical branching device designed for optical signal power splitting. It features excellent performance characteristics such as low insertion loss, low Polarization Dependent Loss (PDL), high channel uniformity, and a wide operating wavelength range. This splitter is engineered to meet the rigorous requirements of various optical network applications.

2. Applications

• FTTH (Fiber to the Home), FTTC (Fiber to the Curb), FTTB (Fiber to the Building)

• Passive Optical Networks (PON)

• CATV networks and data communications systems

• Fiber optic equipment and related systems

3. Key Features

• Complies with Telcordia-1209-core and GR-1221-core standards for high performance

• High channel uniformity ensuring consistent signal distribution

• Low insertion loss minimizing signal attenuation

• Compact and small size for space-efficient installation

• High reliability and stability in diverse operating conditions

• Optional input and output configurations available

• Utilizes Single Mode Fiber Type G657A

Specification

4. Technical Specifications

Parameter	Specification
Operating Wavelength Range	1260 - 1650 nm
Insertion Loss (with connector)	1×4: ≤7.6 dB<br>1×8: ≤10.5 dB<br>1×16: ≤13.8 dB<br>1×32: ≤17.1 dB<br>1×64: ≤20.6 dB<br>2×4: ≤7.5 dB<br>2×8: ≤10.8 dB<br>2×16: ≤14.1 dB<br>2×32: ≤17.4 dB
Polarization Dependent Loss (PDL)	1×4: ≤0.2 dB<br>1×8: ≤0.19 dB<br>1×16: ≤0.18 dB<br>1×32: ≤0.15 dB<br>1×64: ≤0.4 dB<br>2×4: ≤0.2 dB<br>2×8: ≤0.2 dB<br>2×16: ≤0.19 dB<br>2×32: ≤0.18 dB
Physical Size (H×W×L)	45×205×483 mm
Return Loss	UPC: ≥50 dB<br>APC: ≥55 dB
Directivity	≥55 dB
Operating Temperature Range	-40 ~ +85 °C

Product Advantage

1

Complies with Telcordia-1209-core and GR-1221-core standards for reliable high performance
2

Low insertion loss and PDL ensure minimal signal attenuation and stable transmission
3

High channel uniformity guarantees consistent signal distribution across all ports
4

Compact size enables space-efficient rack-mounted installation
5

Wide operating wavelength range (1260-1650 nm) and -40~+85 °C temperature tolerance suit diverse scenarios
6

Optional input/output configurations offer flexible adaptation to different network demands
