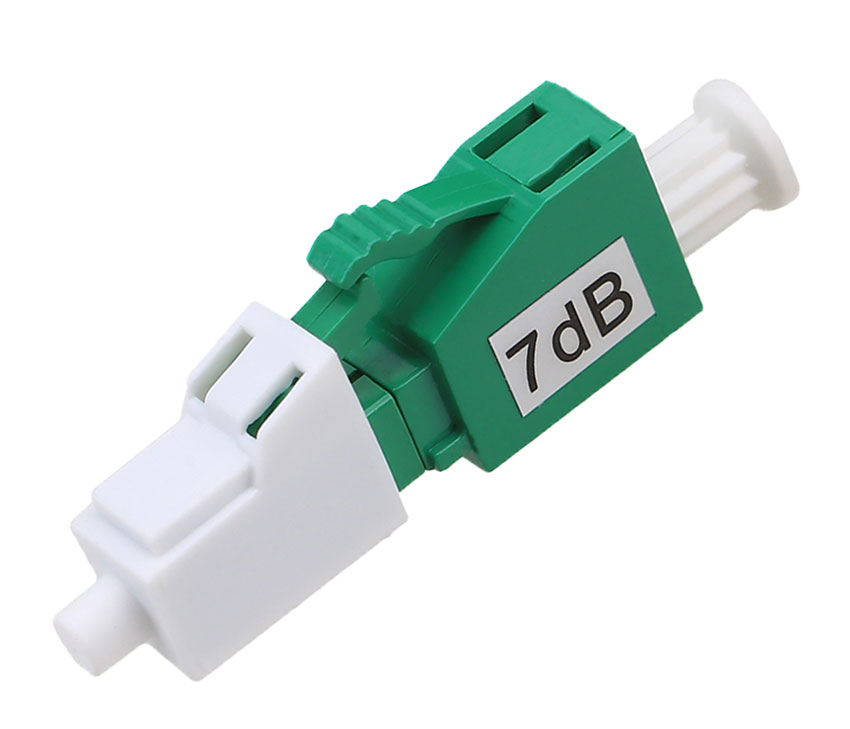

Attenuation level: 7dB with standard tolerance
Core function: Adjusts optical fiber signal power to prevent receiver overload
Key features: Compact robust design, low insertion loss, high return loss, wide temperature adaptability
Compatibility: Works with standard optical fiber connectors and transmission equipment
Applications: Optical communication systems, test/measurement setups, LAN/MAN/WAN
Installation: Requires clean fiber endfaces, dust-free environment, no excessive mechanical stress
1. Attenuation Value
• Standard attenuation level: 7dB
• Attenuation tolerance: Compliant with industry standard specifications for stable signal attenuation performance.
2. General Features
• Designed for optical fiber signal attenuation applications, ensuring reliable signal adjustment.
• Compact and robust structure, suitable for integration into various optical fiber systems.
• Excellent compatibility with standard optical fiber connectors (compatible with common connector types in optical communication systems).
• Low insertion loss to minimize signal degradation during transmission.
• High return loss for reduced signal reflection and improved system stability.
• Stable performance across a wide operating temperature range, adapting to different environmental conditions.
3. Applications
• Used in optical fiber communication systems to adjust signal power levels and prevent receiver overload.
• Suitable for optical fiber test and measurement setups to simulate signal attenuation in real-world scenarios.
• Applied in optical fiber local area networks (LANs), metropolitan area networks (MANs), and wide area networks (WANs).
• Compatible with optical transmission equipment such as optical transceivers, switches, and routers.
4. Installation Requirements
• Follow standard optical fiber connector mating procedures to ensure proper connection.
• Ensure the optical fiber endfaces are clean and free of contaminants before installation to avoid signal interference.
• Mount the attenuator in a dry, dust-free environment to maintain performance stability.
• Avoid excessive mechanical stress or bending during installation and operation to prevent damage to the attenuator or connected optical fibers.
5. Operating and Storage Conditions
• Operating temperature: -20°C to +70°C (typical range, compliant with industry general standards)
• Storage temperature: -40°C to +85°C
• Relative humidity: 5% - 95% (non-condensing)
Precise 7dB attenuation with industry-compliant tolerance for reliable signal adjustment
Compact and robust structure enabling easy integration into diverse fiber systems
Low insertion loss and high return loss to minimize signal degradation and reflection
Broad compatibility with standard fiber connectors and transmission equipment (transceivers, switches, etc.)
Stable performance across a wide operating temperature range (-20°C to +70°C) for versatile environments
Simple installation with minimal requirements, ensuring hassle-free deployment and long-term reliability
