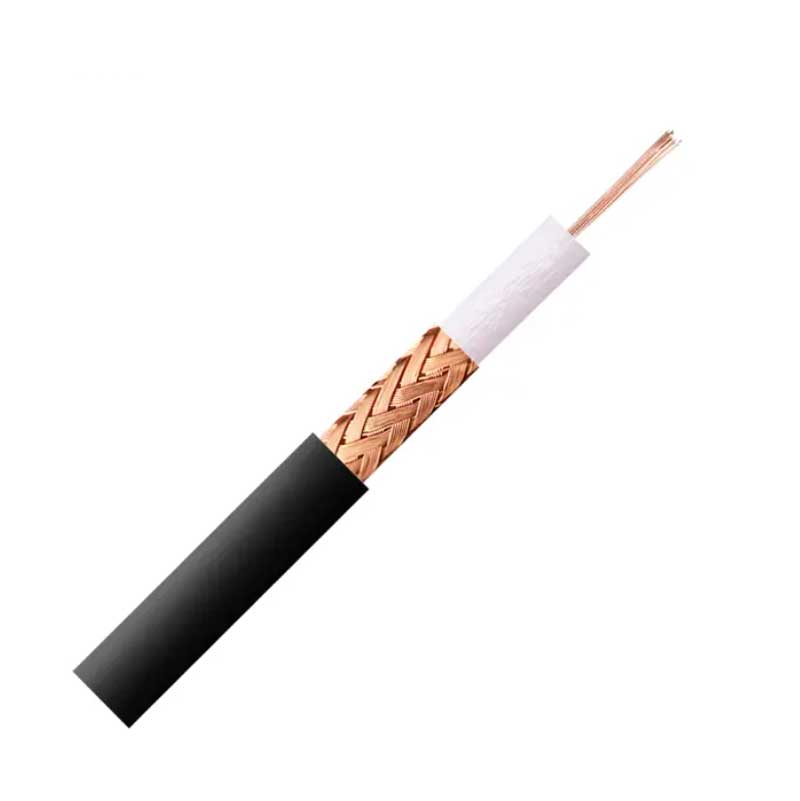

RG213

Inner Conductor	7/0.16 ± 0.01 mm Copper Clad Steel (CCS)
Dielectric	1.52 ± 0.05 mm Solid Polyethylene (SPE)
Shield 1	16 × 4 × 0.10 mm Tinned Copper (TC); Braiding Density: 85.6% ± 3%
Jacket	2.79 ± 0.10 mm Black PVC

Inquire Download

Product Description

Basic Information

• Model: RG213

• Category: Coaxial Cable

• Impedance: 50 ± 2 Ω

• Certifications: UL, ETL, CE, CPR, RoHS

• Standard Compliance: MIL-C-17

Technical Specification of RG213 Coaxial Cable

1. Basic Information

• Model: RG213

• Category: Coaxial Cable

• Impedance: 50 ± 2 Ω

• Certifications: UL, ETL, CE, CPR, RoHS

• Standard Compliance: MIL-C-17

2. Construction Parameters

3. Electrical Characteristics

• Capacitance: 101 ± 5 pF/m

• Velocity of Propagation: 66%

• Maximum Operating Voltage: 5000 VMS

• Maximum Operating Frequency: 1000 MHz

• Attenuation (at 20℃):

4. Mechanical and Environmental Properties

• Cable Bend Radius: 40 mm

• Operating Temperature Range: -40℃ to 80℃

• Installation Temperature Range: -5℃ to 20℃

1

Conductor: 19-strand tinned copper (TC) with 0.254mm strand diameter, total conductor diameter 2.03mm ± 0.05mm, ensuring excellent electrical conductivity and flexibility.
2

Dielectric: 6.98mm ± 0.08mm solid polytetrafluoroethylene (PTFE), featuring low dielectric loss and stable performance across a wide temperature range.
3

Shielding: Dual-layer shielding (aluminum foil + 96% braided tinned copper), providing effective electromagnetic interference (EMI) and radio frequency interference (RFI) rejection.
4

Jacket: 9.53mm ± 0.12mm flame-retardant FEP (fluorinated ethylene propylene), rated for operating temperatures of -55℃ to 200℃, resistant to chemicals and abrasion.
5

Electrical Parameters: Impedance 50Ω ± 1Ω, capacitance 95 ± 3 pF/m, maximum operating frequency 3000 MHz, and attenuation ≤ 32 dB/100m at 2000 MHz (25℃).
6

Mechanical Properties: Minimum bend radius 38mm (static) / 76mm (dynamic), tensile strength ≥ 1500 N, and weight 1.2 kg/m, suitable for harsh installation environments.
