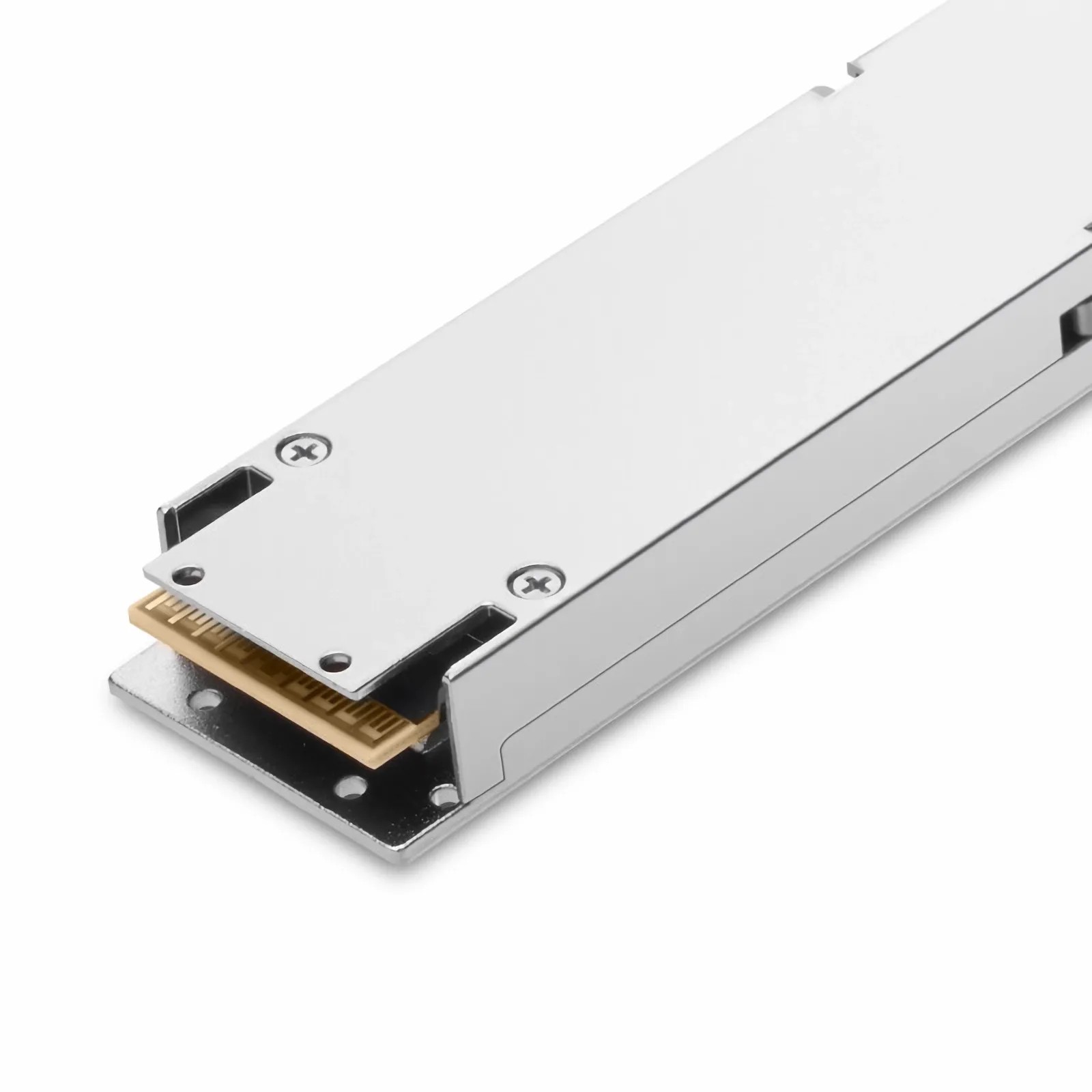

NVIDIA/Mellanox MMS4A00 Compatible 1.6T 2xDR4

NVIDIA/Mellanox MMS4A00 Compatible 1.6T OSFP 2xDR4/DR8 PAM4 InfiniBand XDR Optical Transceiver (SMF, 1310nm, 500m, Dual MPO-12/APC, DOM, Flat Top)

The NVIDIA/Mellanox InfiniBand MMS4A00 Compatible OSFP Optical Transceiver is an InfiniBand 1.6T 2x 800Gb/s Twin-port OSFP, 2xDR4/DR8 single mode, parallel, 8-channel transceiver using two, 2-fiber, 4-channel MPO-12/APC optical connectors at 800Gb/s each. The parallel single mode, short reach 8-channel (2xDR4/DR8), uses 200G-PAM4 modulation and has a maximum fiber reach of 500-meters using 8 single mode fibers. It is qualified for use in InfiniBand XDR end-to-end systems.

It is the ideal solution for supercomputing and HPC industries, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnectivity. The flat-top (OSFP-RHS) version is suitable for liquid-cooled switches.
