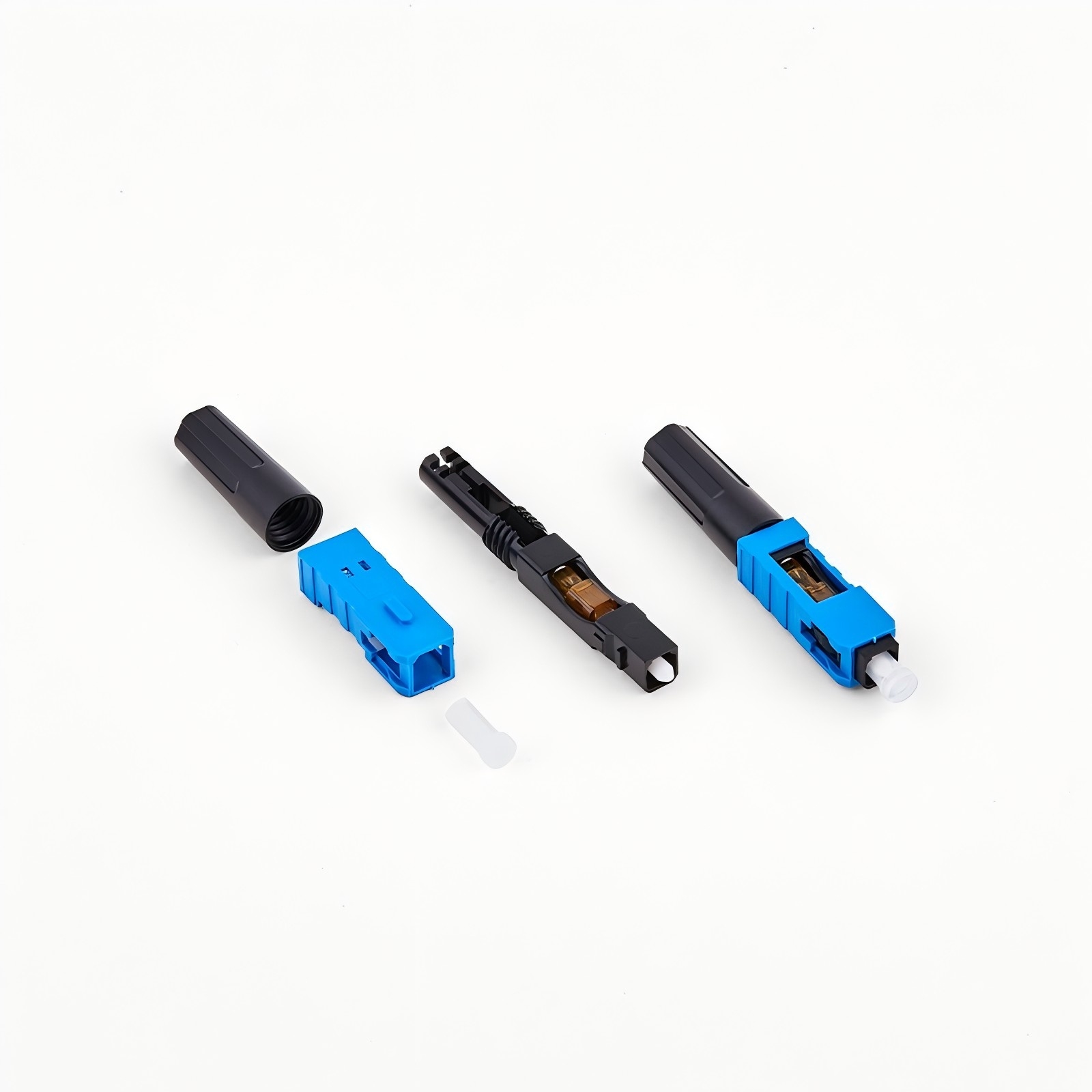

K02(53mm)-UPC Horizontal FAOC Technical Specification
This specification defines the core technical parameters, structural dimensions and operating environment requirements of the K02(53mm)-UPC Horizontal type FAOC product, serving as the basis for product production, inspection and application.
1. Product Basic Information
Item | Specification |
Product Model | K02(53mm)-UPC Horizontal |
2. Structural Dimension Parameters
Item | Specification |
Product Length | 53mm |
Inner Diameter of Ferrules | 125um |
Cable Diameter | 1. Drop Cable: 2.0×3.0mm / 2.0×5.0mm 2. Round Cable: 0.9mm |
3. Optical Performance Parameters
Item | Specification |
Ferrules Type | SM/UPC / SM/APC |
Insertion Loss | Average (AVG) ≤0.3dB; Maximum (MAX) ≤0.5dB |
Return Loss | UPC≥50dB; APC≥55dB |
4. Environmental and Operational Performance Parameters
Item | Specification |
Working Temperature | -20~+75℃ |
Storage Temperature | -40~+85℃ |
Mating Times | 500 Times |
5. Notes
1. This product is suitable for horizontal deployment scenarios and is compatible with specified specifications of single-mode optical cables (SM);
2. In actual use, select the corresponding ferrule (UPC/APC) according to the optical cable type to ensure that the optical performance meets the standards;
3. The plugging and unplugging operation shall be carried out standardized to avoid exceeding the specified mating times, which may affect the service life of the product.
