2.Technical Parameters Comparison
Product Type | Fiber Type | Strength Member | Armor Option | Jacket Type | Application Environment |
Bow-type Drop Cable A/B | G.657.A2 | 2×FRP / Steel | No | LSZH | Indoor/outdoor, aerial, duct |
Armored Bow-type Drop Cable | G.657.A2 | FRP + Steel Armor | Corrugated Steel | LSZH | Rodent-proof, semi-exposed |
Aerial/Duct Drop Cable | G.657.A1/A2 | Steel/FRP + Messenger | Optional Steel | LSZH | Long-span aerial or buried conduit |
Wireless RRU Drop Cable A–G | G.657.A2 | FRP / Steel | Some armored | LSZH | Base stations, rooftop, outdoor RRU |

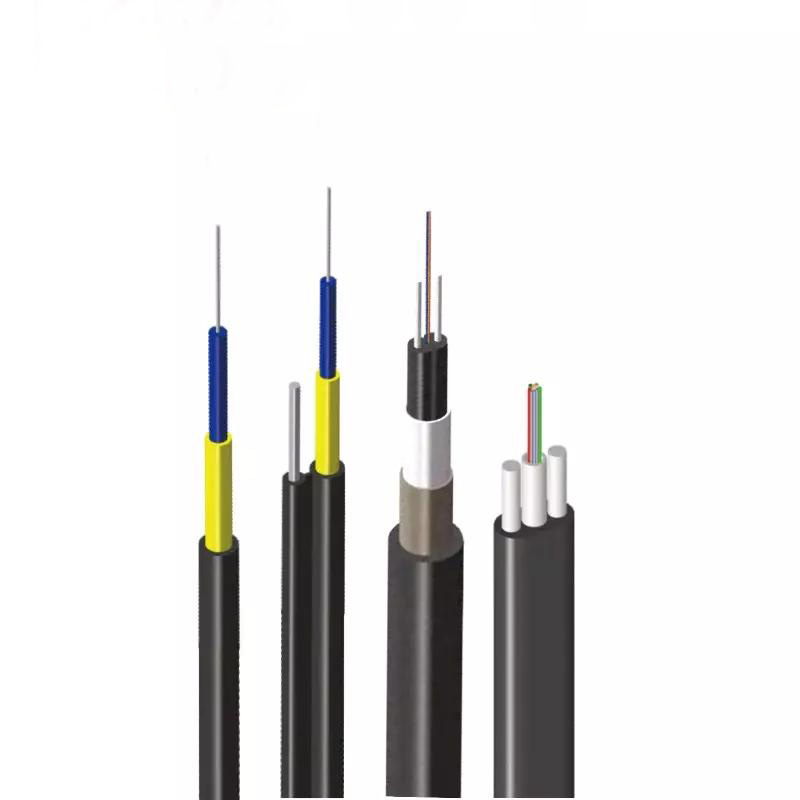

3.Product Classification & Details
3.1 Bow-type Drop Cable (A and B)
• Fiber Types: G.657.A2 / G.657.A1
• Strength Members: 2x FRP or Steel
• Messenger Wire: FRP or steel (optional)
• Dimensions: 2.0 x 3.0 mm / 2.0 x 5.0 mm
• Jacket Material: LSZH (black or white)
• Applications: FTTH indoor/outdoor deployments; wall mount, duct, or clamp mounting; compatible with mechanical coiling and fusion splicing
3.2 Armored Bow-type Drop Cable
• Structure: FRS + Steel with gap, or UF or Armor
• Bend Radius: ≥10 times of cable diameter
• Outer Sheath: UV-resistant LSZH
• Applications: Buildings with rodent risk; surface installations under mechanical stress; long-span deployments requiring robust physical protection
3.3 Fiber-Optic Aerial/Duct Drop Cable
• Messenger Options: 1.2mm FRP or 1.0mm Steel
• Installation Method: Self-supporting, pole-mounted or ducted
• Fiber Count: 1–4 cores
• Applications: Long-span FTTH overhead cabling; outside structure cabling; pole-to-home connections
3.4 Wireless RRU Drop Cable (A–G)
• Design Variations: Some with armored protection; some with FRP or LSZH coating; supports robust outdoor use and indoor interfacing
• Common Features: Low attenuation single-mode fibers; high/medium flexibility with crush resistance; UV-stable LSZH insulation
• Applications: 4G/5G base stations; interconnection between Remote Radio Head (RRH) and Base Band Unit (BBU); hybrid fiber-power modular systems
3.5 Customization Options
• Fiber Count: 1, 2, or 4 cores
• Fiber Options: G.657.A1, G.657.A2, G.652.D
1. Jacket Color: Black, White, Orange (custom colors available)
2. Messenger Type: FRP or Steel
3. OEM Services: Custom branding and labeling
4. Connectorization (Optional): SC/APC, SC/UPC, LC, pre-terminated
5. Packaging: Roll, wooden spool, carton, pallet
