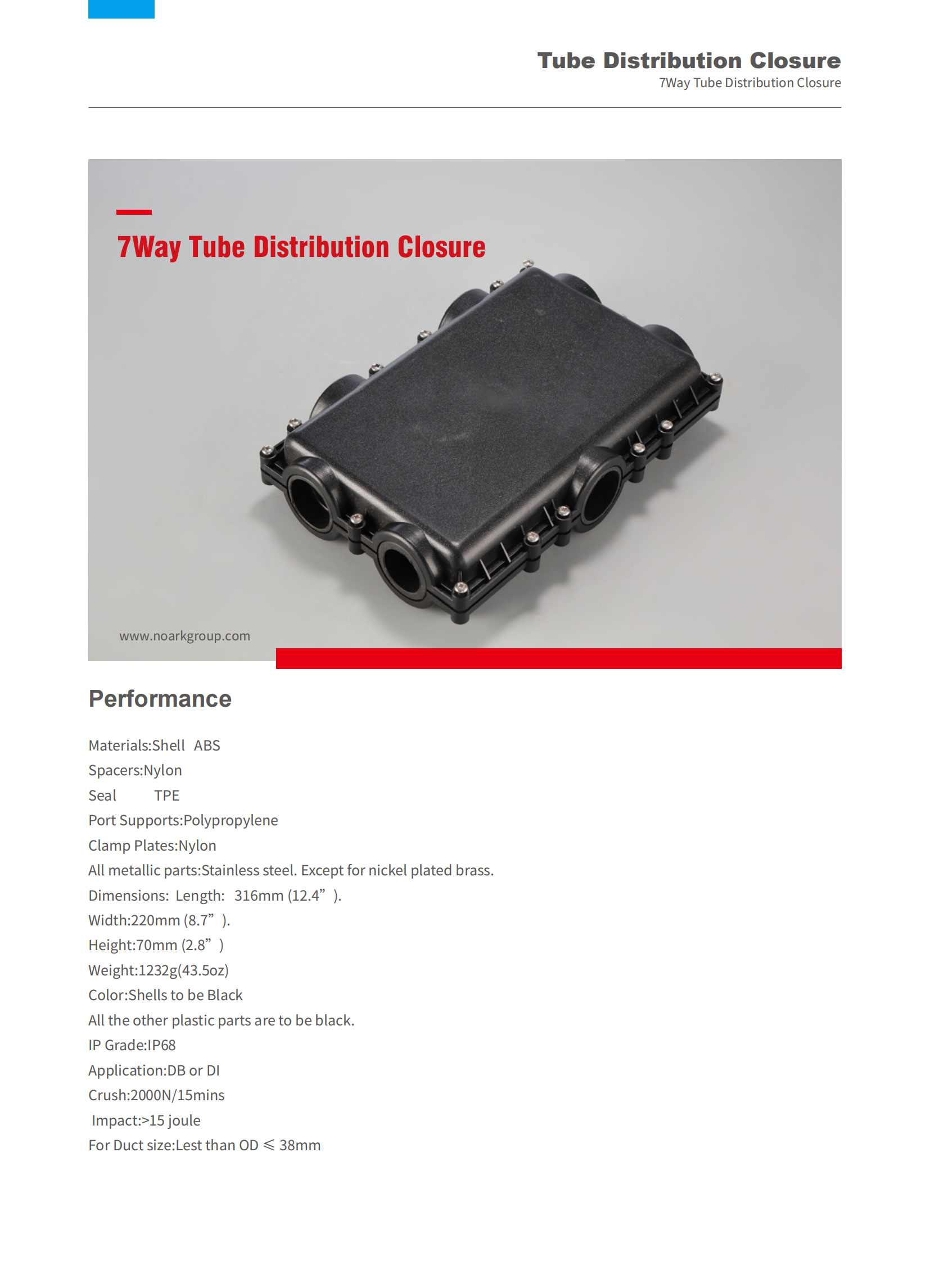

Materials:Shell ABS
Spacers:Nylon
Seal TPE
Port Supports:Polypropylene
Clamp Plates:Nylon
All metallic parts:Stainless steel. Except for nickel plated brass.
Dimensions: Length: 316mm (12.4”).
Width:220mm (8.7”).
Height:70mm (2.8”)
Weight:1232g(43.5oz)
Color:Shells to be Black
All the other plastic parts are to be black.
IP Grade:IP68
Application:DB or DI
Crush:2000N/15mins
Impact:>15 joule
For Duct size:Lest than OD ≤ 38mm
